540 Series Trunk and Distribution Cable

Quote Now

Specification

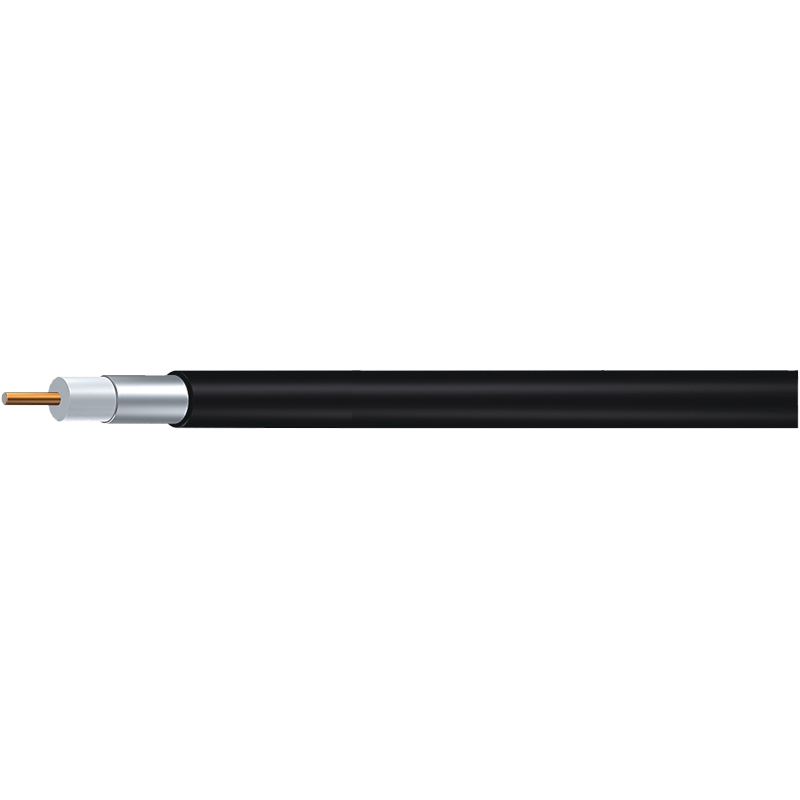

CommSpace's 540 Series cable is welded tube which provide cables with optimal immunity to interference radiation and very good mechanical stability against bending and compressive stress. QR540 aluminum tube cable is used for CATV trunk line and Direct Broadcasting Satellite.

Physical Construction and Dimensions

No.	Item	Material	Notes
?	Center Conductor	Copper Clad Aluminum	3.15±0.03mm
?	Dielectric	Gas Injected Foam PE	13.03mm Nominal
?	Shield	Solid Aluminum Tube	13.72±0.05mm (0.34mm)
?	Jacket	PE	15.49mm Nominal

Mechanical and Environmental Characteristics

Center Conductor Bond to Dielectric ≥	302N
Minimum Bending Radius	10.2cm
Maximum Pulling Tension	100kgf
Operating Temperature	-55°C~85°C

Electrical Characteristics

Maximum DC Resistance of Center Conductor@20°C	3.48 Ω/km
Maximum DC Resistance of Outer Conductor@20°C	1.97 Ω/km
Maximum DC Loop Resistance @20°C	5.45 Ω/km
Nominal Velocity of Propagation	87%
Capacitance	50±3 pF/m
Impedance	75±2 Ω
Structural Return Loss
?5-1002MHz ≥	30 dB
1002-1218MHz ≥	24 dB
1218-1794MHz ≥	20 dB
1794-2250MHz ≥	20 dB
2250-3000MHz ≥	20 dB

Attenuation @ 20°C

Frequency(MHz)	Max Value(dB/100m)
5	0.46
55	1.54
211	3.12
250	3.38
270	3.54
300	3.74
330	3.93
350	4.04
400	4.36
450	4.63
500	4.92
550	5.18
600	5.44
750	6.10
870	6.56
1002	7.12
1218	7.89
1500	9.07
1794	10.11
1800	10.13
2000	10.81
2200	11.46
2500	12.41
2700	13.03
3000	13.93
